Description

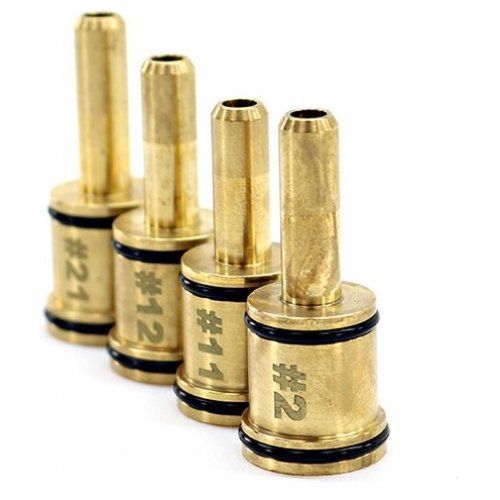

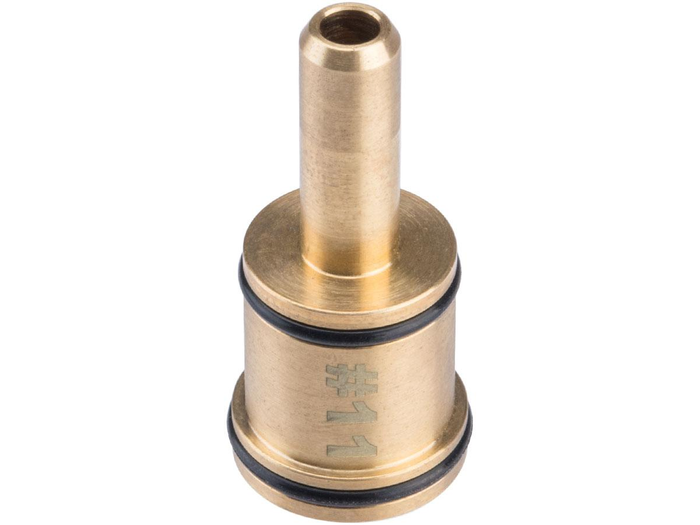

For cylinder conversion systems we assign numbers to the nozzles instead of using the rifle model. This is because the nozzle length can vary between the same gun model when made by different manufacturers. This can be from the manufacturer designing the rifle differently, or from the thickness of the gearbox shell affecting how far from the hop-up chamber the cylinder sits. Therefore one nozzle length may work in different rifle models but not necessarily work in the same model from a different manufacture. For example, a standard MP5 could require any of 4 different nozzle lengths depending on the manufacturer.
Num
Most Commonly Used With
Tip
1 (Unmarked)
TM M4/M16, TM MP5 A/SD, ICS MP5 A/SD, G&G KAC SR-25E2
0.841
2
CYMA AK, CYMA MP5 A/SD, G&G UMP
0.882
4
G&G GR-25
1.466
5
ICS SIG 550/551/552
0.979
6
KA FAL, TM MP5K, A&K M240
0.910
7
PTS Masada, CA SCAR-L
1.150
8
VFC SCAR-H
1.523
9
E&L AK, S&T TAVOR
0.892
11
CA KAC LMG, VFC MP5 A/SD
0.763
12
LCT AK-47/74/M
0.851
13
A&K MASADA/ACR, CYMA SR-25 (V2.5 Kythera SA)
1.362
14
KA CZ 805 BREN
1.405
15
JG G36
1.070
17
CA AUG
1.020
21
Elite Force/CYMA MP5K, CA SA58
0.938
K1
A&K/JG SR-25 (V2.5 Kythera SA)
1.314
